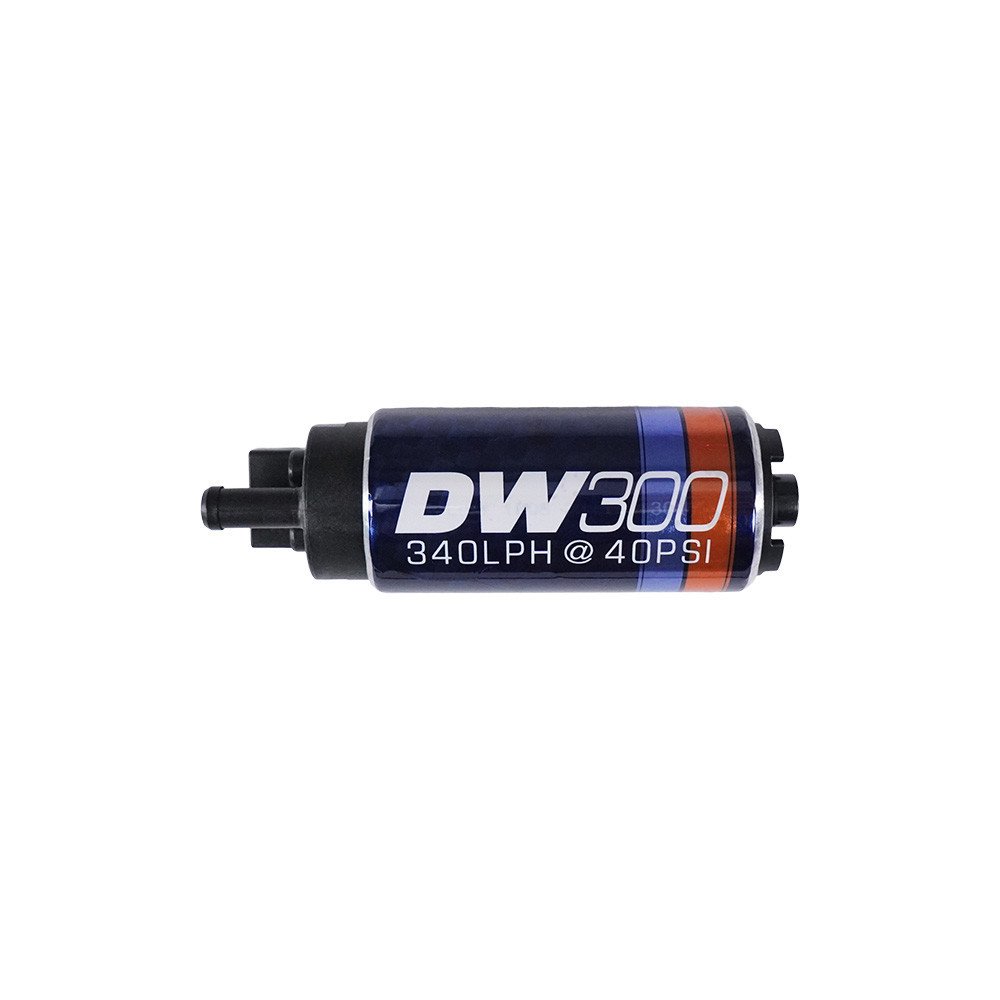

DW 300 Fuel Pump (340l/h)

DW300 (9-301) – In-Tank Pump

Models

• 9-301 Standard (As Pictured)

Delivery Characteristics

Description

The DW300 is the flagship standard-fitment in-tank pump. It flows 340 lph at 40 psi and is a popular choice for E85 applications or situations requiring the highest flowing standard in-tank pump. Quiet operation and pulse-width- modulation compatibility come from the turbine impeller and computer-balanced armature.

E85 compatibility is ensured through carbon commutators and a fully encapsulated armature. All DW fuel pumps include a 3-year no-fault warranty.

Specifications

• Weight: 12.6 oz (360 g)
• Current Draw @ 40 psi: 11 Amps (13.5 V)
• Max Voltage Input: 18 V
• Min Voltage Input: 6 V
• External Materials: Electroplated Steel
• Impeller Design: Single Scroll Composite Turbine
• PRV Activation: 125 psi
• Connector Terminal: Spade Pos/Neg
• Outlet Fitting: 5/16" Hose Barb (7.7 mm ID, 11.0 mm OD)

Notes

To ensure maximum voltage at the pump, a 12-gauge hardwire kit is strongly recommended for optimum performance (DeatschWerks part #FPHWK).

Compliance Notice

THIS PRODUCT MAY BE USED SOLELY ON VEHICLES USED IN SANCTIONED COMPETITION WHICH MAY NEVER BE USED UPON A PUBLIC ROAD OR HIGHWAY, UNLESS PERMITTED BY SPECIFIC REGULATORY EXEMPTION.
